Guided Ejector Bushing Bronze Plated
  • Bronze Plated


Specifications

M
H
L
F
S
A
G
+.0005/-.0000
+.0005/-.0000
+.000/-.062
+.000/-.010
+.000/-.001
+.000/-.030
.501
.7505
1.5
.853
.749
1.00
.56
.751
1.1255
1.5
1.302
1.124
1.00
.56
.876
1.2505
1.5
1.427
1.249
1.00
.56
1.001
1.3755
1.75
1.552
1.374
1.12
.62
1.251
1.6255
1.75
1.802
1.624
1.12
.62
1.501
2.0005
1.75
2.177
1.999
1.12
.62
2.001
2.5005
2.25
2.687
2.499
1.62
.80

^ return to top

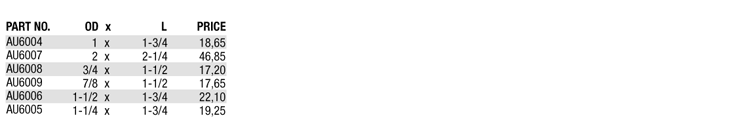

Standard Sizes & Pricing

Guided Ejector Bushing Bronze Plated
